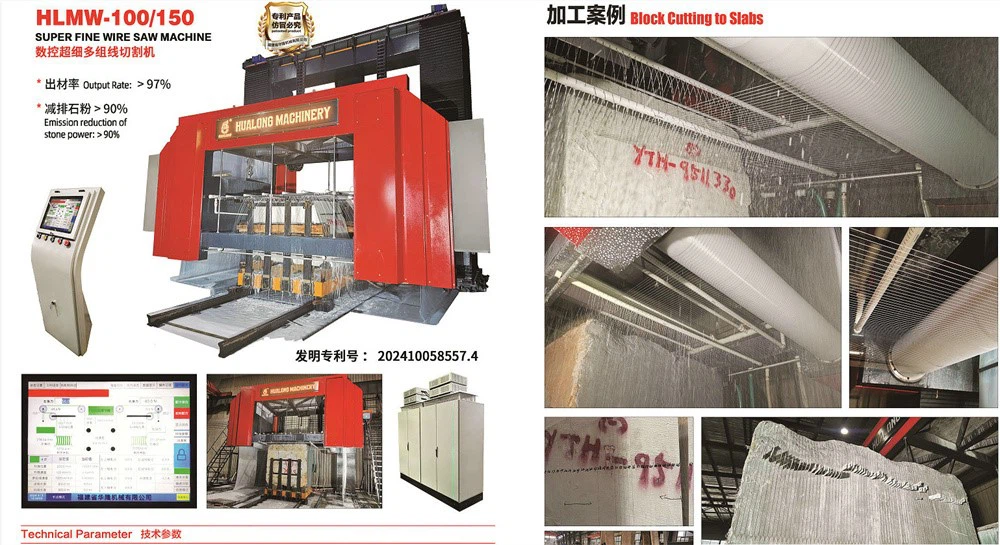

Stone Cutting Wire Saw Machine

Wire saw, full name "diamond multi wire cutting machine", is a large-scale stone multi-wire cutting machine suitable for sawing and processing natural stone and artificial granite. Cutting is achieved by unidirectional circulation or reciprocating circulation of diamond wire. Compared with traditional gang saws, the saw seam is narrower, the material yield is higher, and the energy consumption is lower.

When cutting stone with traditional tools such as saw blades, saw belts or beaded wire saws, the kerf width is generally between 3 and 10 mm, while the kerf width of wire saws is only 0.5 mm, which greatly improves the cutting accuracy and the yield rate can reach up to 98%. For example, if 1 cubic meter of fish belly white stone is cut into 1.8 cm thick slices, it can be cut into 46 slices using traditional sawing, while 53 slices can be cut using stone wire saws. It can be seen that the application of this technology can not only improve the capacity utilization rate of the stone industry, but also bring higher economic benefits to users.

1: The cutting saw seam is only 0.5~0.7mm, which is much lower than the existing stone machining saw seam (3~9mm), 6-9 times smaller, and the yield rate is increased by 15-30%

2: Ultra-thin large plates can be cut directly from the rough material, with a processing size of 3000*1000*1000mm. As long as the hardness of the stone allows, the thinnest can even be less than 1mm

3: The mechanical noise during production is much lower than that of traditional stone machines, and the wastewater and waste residue generated during the processing process are reduced by more than 85%

4: The floor space of traditional stone cutting machines is reduced by 50%, and the flatness is increased by 50%.

5: The cutting accuracy of multiple wire saws is +-0.1mm, but that of multi-strand rope saws is +-0.5-1mm

6: One-piece molded castings, with a streamlined and more stable structure, lower failure rate, and lower maintenance cost

7: Lower cutting cost: cheaper wires, lower total power, and more energy-saving
