Products Description

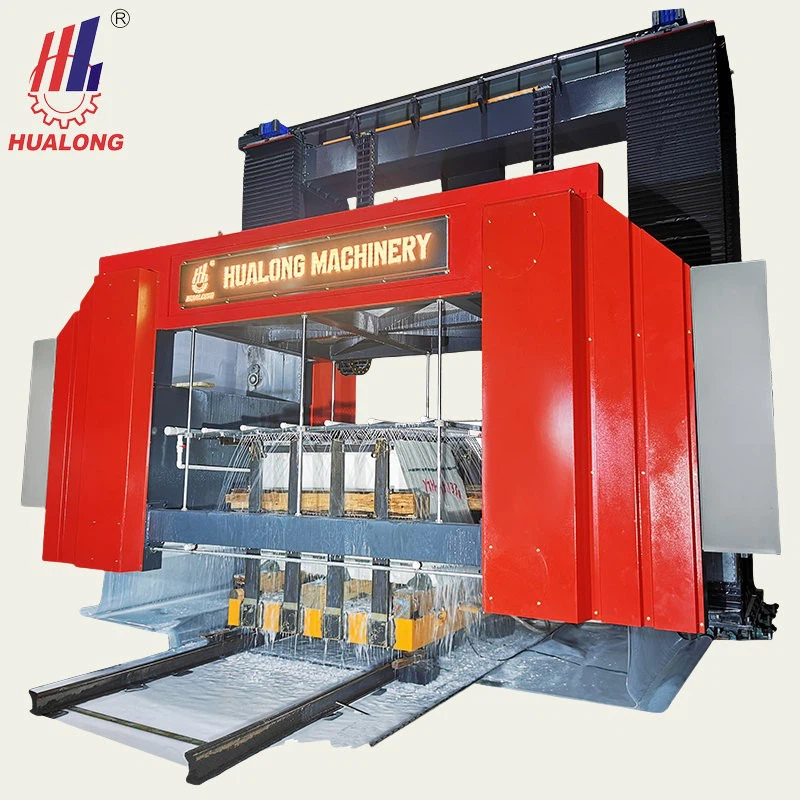

The HLMW-100/150 Ultra-Thin Multi-Wire Saw is a groundbreaking technological development by Hualong Machinery in the stone industry and represents a significant advancement in stone cutting technology.
The HLMW-100/150 uses ultra-thin diamond wire to cut the slabs. With a diameter of just 0.55 mm, this wire can significantly reduce the cutting width or kerf, thereby improving material utilization and increasing production.
This high-precision multi wire saw machine can cut slabs with high flatness and reduce the amount of material wasted during the cutting process. The smaller the kerf, the less abrasive is used during the polishing stage, further improving the cost-effectiveness of stone processing.
The HLMW-100/150 significantly increases productivity in stone cutting. Compared to conventional stone cutting machines such as gang saws and multi-wire saws, the HLMW-100/150 significantly increases production.Using ultra-thin diamond wire to cut slabs allows the HLMW-100/150 to produce at least 16% more slabs than gang saws and 20-25% more than conventional multi-wire saws using thicker diamond wires.The HLMW-100/150 not only maximizes the number of slabs produced per block cut, but also improves the overall efficiency of the cutting process. This is especially important for expensive stone, where every extra slab cut means more money. The economic benefits are extremely high.
Environmental sustainability is another feature of the HLMW-100/150. The machine's ultra-thin diamond wire reduces the amount of stone dust and mud generated during stone cutting. Stone dust emissions are reduced by at least 16% compared to gang saws and 30-35% compared to older multi-wire saws. The reduction in waste contributes to a cleaner working environment. Minimizing the accumulation of sludge and debris also extends the life of the water filtration system.
The HLMW-100/150 also excels in terms of energy efficiency. The HLMW-100/150 consumes approximately 40-45 kWh of electricity per hour, which is much lower than the 80 kWh required by traditional gang saws. The reduced energy consumption not only reduces operating costs, but also improves the economic benefits of stone processing plants.
The HLMW-100/150 excels in cutting precision and versatility. The machine is capable of cutting ultra-thin slab as thin as 10 mm and can keep the slab thickness within ±0.3mm, ensuring that the surface of the cut slab does not require complex post-processing, minimizing the need for additional processing.
The compact design of the HLMW-100/150 also reduces the required base area by more than 30% compared to traditional gang saws. This design allows stone processing plants to use production areas more efficiently and can be easily installed in the small workshop environment of small stone processing plants.
The HLMW-100/150 uses an advanced control system with a user-friendly interface and advanced servo technology. The direct-drive motor structure also ensures accurate cutting and stable operation of the machine. The servo-driven feed system can adjust the cutting speed and precise tension control to ensure smooth performance of the whole machine and can adapt to different stone types and cutting requirements.
