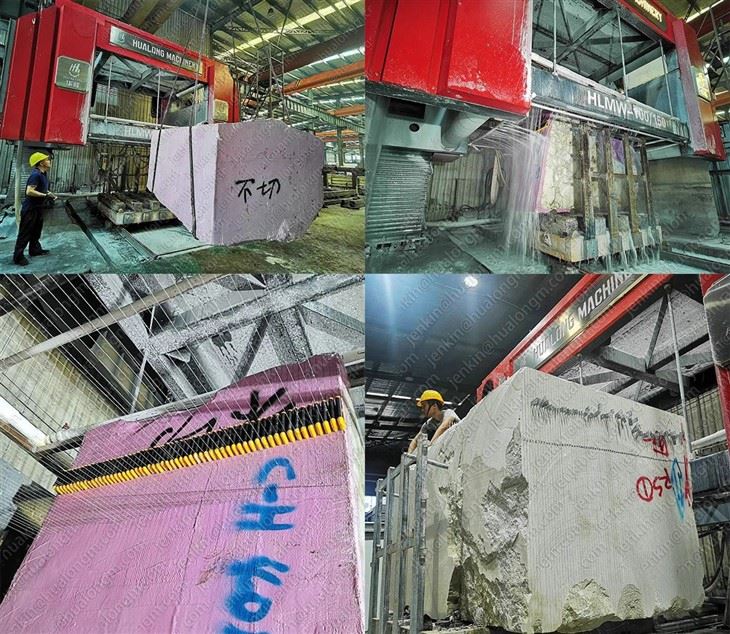

The newly developed CNC ultra-fine multi wire saw cutting machine put into use by Fujian Hualong Machinery Co., Ltd. only requires workers to input parameters on the panel, and the cutting machine will start to operate. The dense diamond wires will cut the hard raw stones weighing several tons. Each piece of stone cut out has a flat surface and uniform thickness. Using diamond wire to cut stone is a global first. "The diamond wire diameter of this cutting machine is 0.55 mm. It has the characteristics of small wire diameter, flexible cutting, and high processing accuracy. The saw seam is significantly reduced, which greatly saves the raw stone material." The on-site technician introduced. Diamond wire has been widely used in the photovoltaic industry to process silicon wafers. Inspired by this, Fujian Hualong Machinery Co., Ltd. pioneered the application of diamond wire in stone cutting and developed a CNC ultra-fine multiwire cutting machine, which solved the difficulties of traditional stone processing tools such as large saw seams, difficulty in directly processing ultra-thin plates, and more wastewater, waste residue and dust, filling the domestic and even international gaps.
Traditional stone cutting mostly uses circular saw blades, which form 3-8 mm saw seams on the stone, which not only causes the loss and waste of stone, but also produces more wastewater, waste residue and dust. Fujian Hualong Machinery Co., Ltd. has been exploring and innovating how to reduce saw seams and improve the yield of stone.
"There is no experience to learn from, no data to refer to, just passion and hard work day and night." Talking about the research and development process, Lin Tianhua, general manager and R&D staff of Fujian Hualong Machinery Co., Ltd., said with deep feelings that sometimes he suddenly got inspiration at night, and he immediately got up to write plans, modify details, etc., and studied for several hours.
The staff involved in the research and development said that it is difficult to break through each technical point. How to reduce the break rate? How to control the stability of the mechanical system? How to achieve higher precision? These must be explored and practiced continuously. For a technical point, even go to several provinces to understand the solutions and technologies of other industries. Accumulating little by little, eventually turning "concept" into "product"
After more than three years of research and development, this year, the company's CNC ultra-fine multi wire cutting machine was officially launched, effectively reducing saw seams and improving the yield rate of stone.The diameter of the diamond wire can be adjusted between 0.3-0.8 millimeters, and the thickness of the stone can be cut out from 5-30 millimeters.
Hualong's thin multi-wire saw machine solves the problem of cracks and breaks when cutting marble
Flatness Is Controlled Within +/-0.3mm
Especially For Some Expensive Imported Marbles, As More Production, As More Profit Gotten
Technichal:
Customers' Spot:
