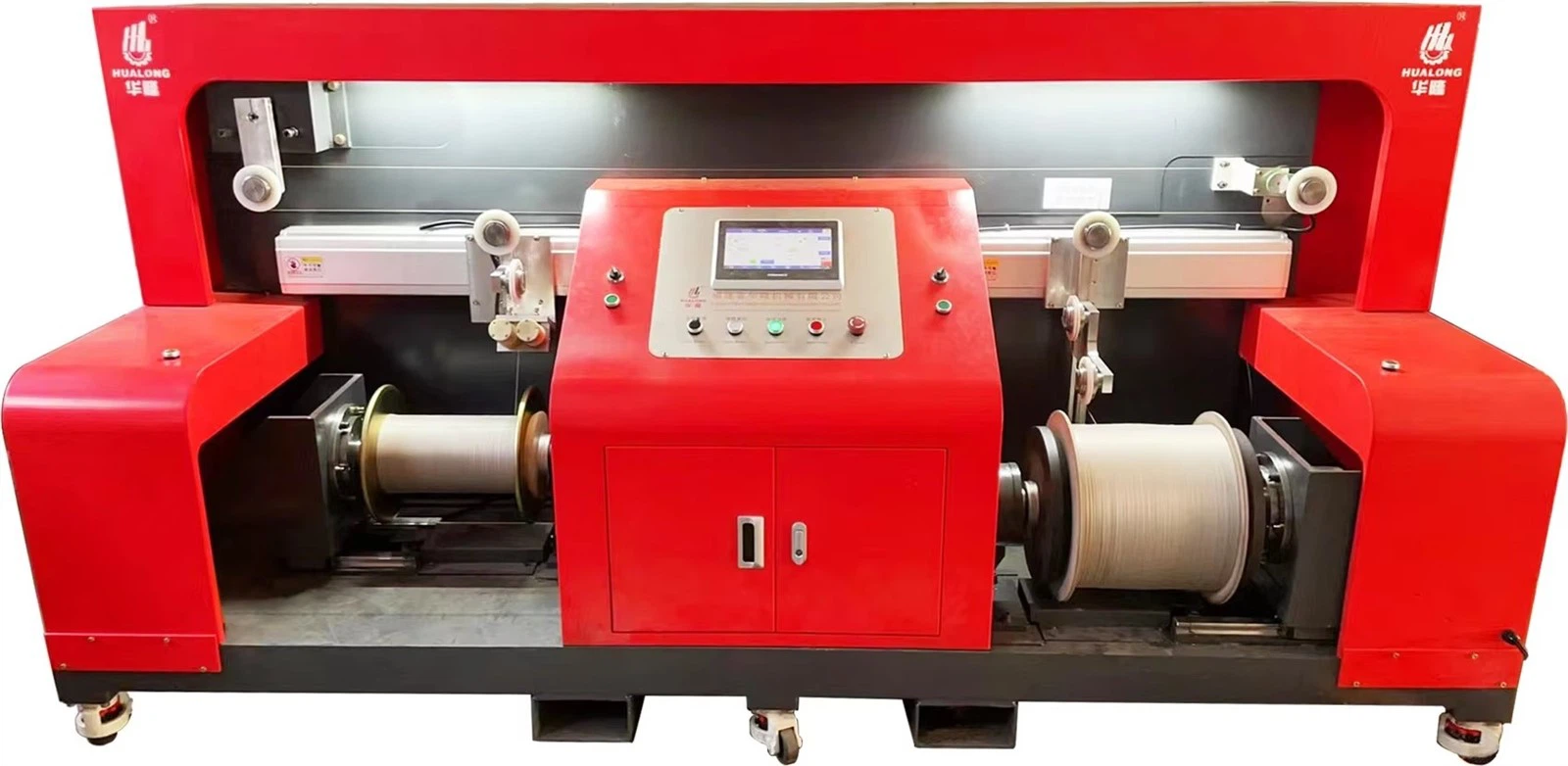

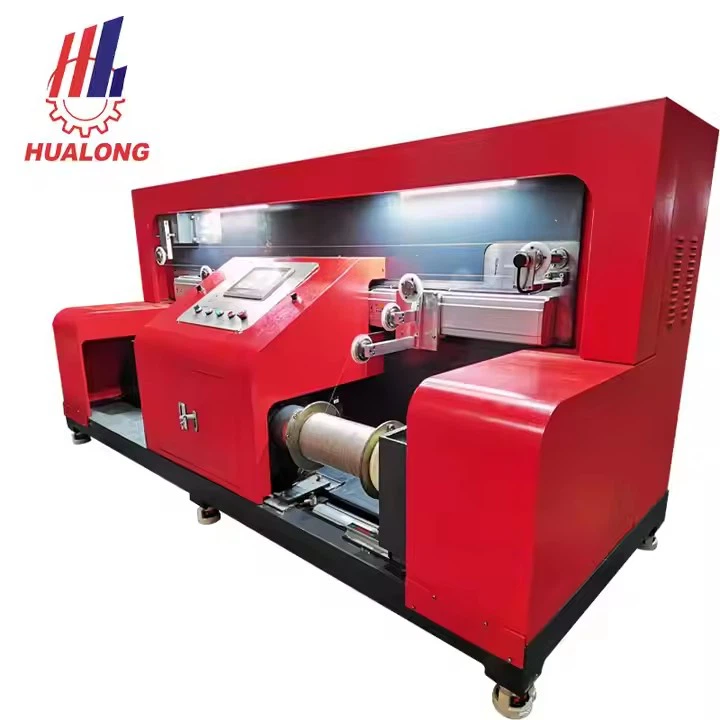

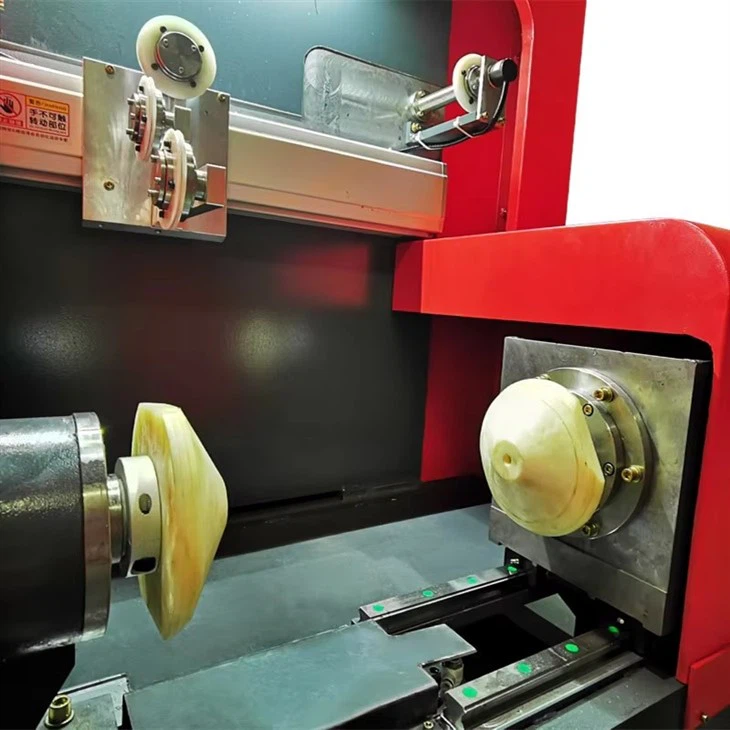

HLFR-400 Diamond Wire Rewinder is a partner for the ultra thin multi wire saw. It rewind the diamond wire orderly with proper tension. So that the block cutting can work stably.
Features:
-

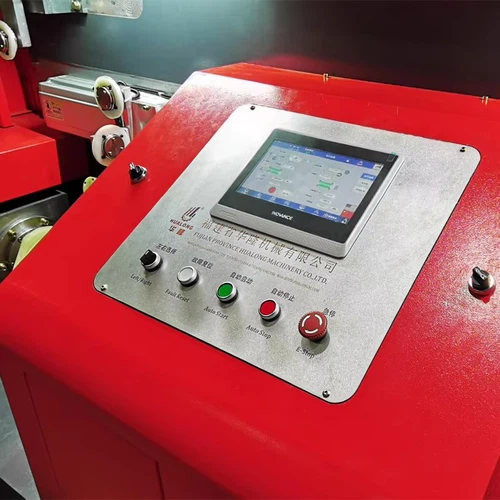

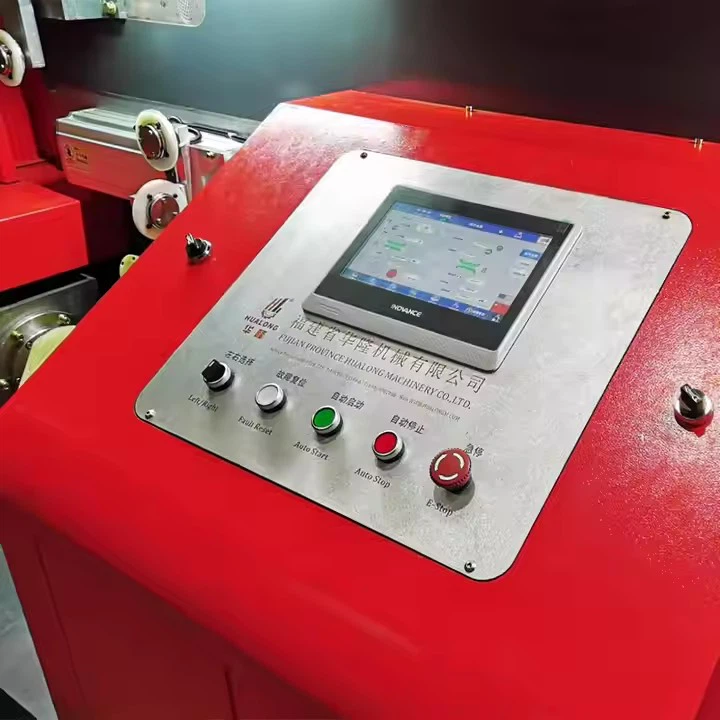

Adopt PLC programmable control system, servo drive and touch screen human-machine interface.
-
The program space is large. The editing, transplantation, deletion or increase of the process program is clear, intuitive and convenient
-
Smooth pay-off.
-
Winding line is stable, linear flat.
-

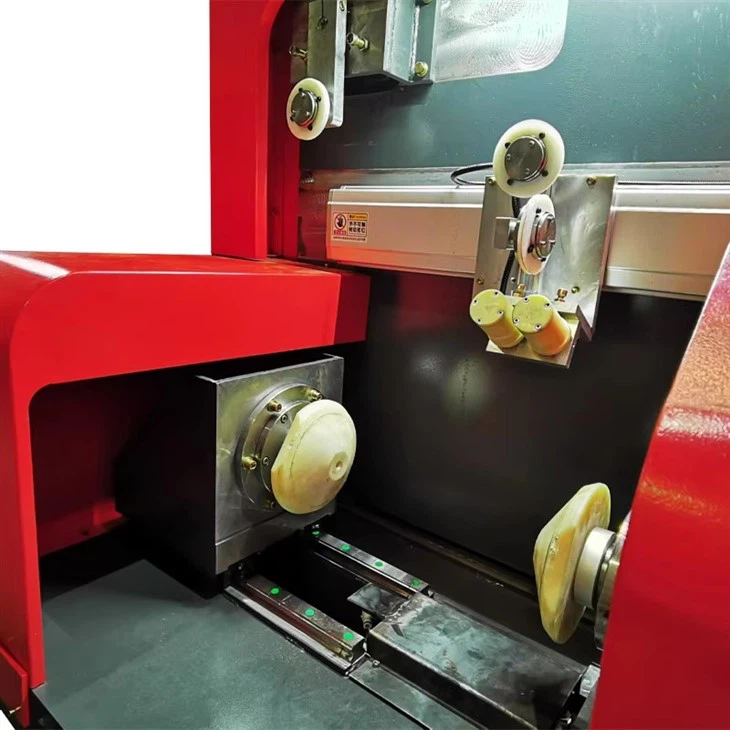

The whole machine adopts pay-off, tension, take-up integrated structure design, with good rigidity and stability, effectively reduce mechanical vibration.
-
The tension is controlled by servo motor and be set digitally.
-
Longer life
Technichal Data
| Max. line speed | m/min | 300 |
| Max. diameter of pay-off wheel | Mm | Φ390mm |
| Max. wiring stroke | mm | 400 |
| Max. wiring pitch | mm | 0-5 (servo adjustable) |
| Diameter of diamond wire | MM | 0.1-1 |
| Take-up and pay-off tension | N | 0-130 (servo adjustable) |
| Gross power | KW | 17.8 |
| Dimensions (LxWxH) | MM | 2900x1100x1500 |

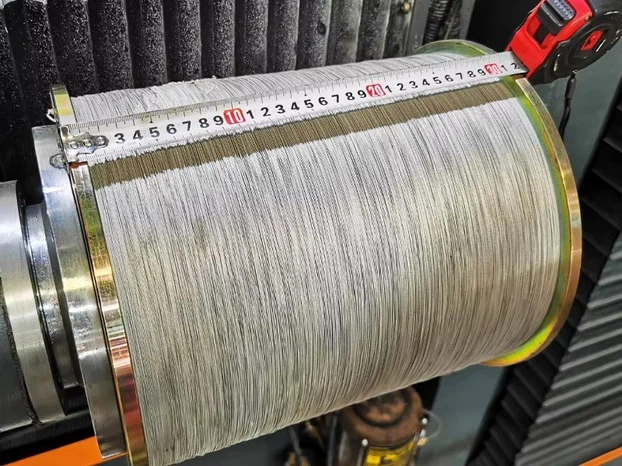

Wire roller
30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting passivated, and then another length of 800m to 1000m new wire is released for cutting

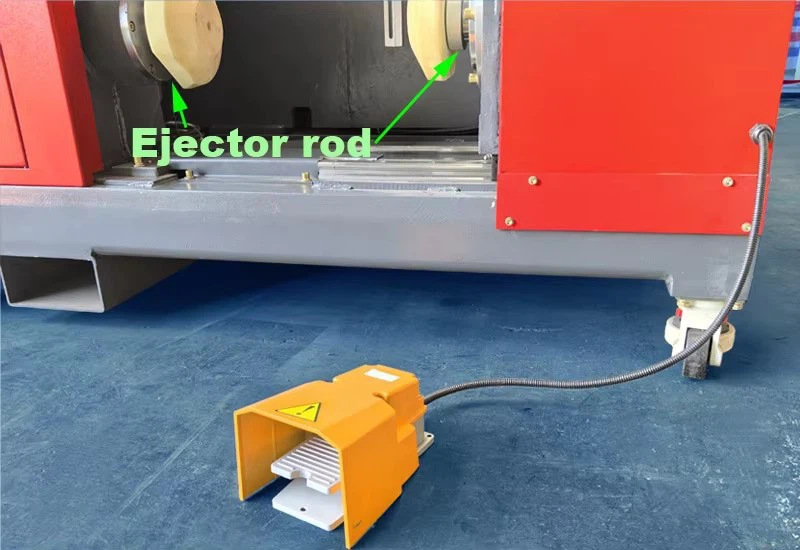

Foot Switch
Easy to control the expansion of the 2-side hydraulic ejector rod, while installing the wire roller.
