As a supplier of Multi Wire Cutting Machines, I understand the crucial role that cutting quality plays in various industries. Whether it's slicing through hard materials like silicon wafers, ceramics, or stones, achieving high - quality cuts is essential for the success of many manufacturing processes. In this blog, I'll share some practical strategies to improve the cutting quality of a multi wire cutting machine.
1. Selection of the Right Cutting Wire
The cutting wire is the heart of a multi wire cutting machine. Different materials require different types of wires. For instance, when cutting hard and brittle materials such as silicon, a Diamond Cutting Wire Saw is often the best choice. Diamond - coated wires offer high abrasion resistance and can maintain a sharp cutting edge for a long time.
The diameter of the wire also affects the cutting quality. A thinner wire can produce narrower kerfs, which means less material loss during the cutting process. However, thinner wires may be more prone to breakage, so a balance needs to be struck based on the specific application. Our Super Fine Multi Wire Saw Machine is designed to work with ultra - thin wires, enabling precise and efficient cutting.
2. Tension Control
Proper tension control of the cutting wire is vital for achieving consistent cutting quality. If the wire tension is too low, the wire may sag, resulting in uneven cuts and reduced cutting accuracy. On the other hand, excessive tension can cause the wire to break prematurely.
Modern multi wire cutting machines are equipped with advanced tension control systems. These systems can automatically adjust the tension of the wire during the cutting process to ensure a stable cutting performance. Regularly check and calibrate the tension control system to make sure it is functioning correctly.
3. Cutting Fluid Management
Cutting fluid serves multiple purposes in a multi wire cutting operation. It helps to cool the cutting wire and the workpiece, reducing heat - induced damage. It also lubricates the wire, reducing friction and wear, and flushes away the debris generated during the cutting process.
The type and quality of the cutting fluid are important. Choose a cutting fluid that is compatible with the material being cut and the cutting wire. Regularly monitor the concentration and temperature of the cutting fluid. If the fluid is too concentrated, it may cause clogging; if it's too dilute, it may not provide sufficient cooling and lubrication. Also, ensure proper filtration of the cutting fluid to remove the debris and prevent it from re - entering the cutting area.
4. Workpiece Fixation
A secure and stable workpiece fixation is necessary for high - quality cuts. If the workpiece moves during the cutting process, it can lead to inaccurate cuts and surface defects. Use appropriate fixtures and clamping devices to hold the workpiece firmly in place.
Before starting the cutting operation, make sure the workpiece is properly aligned with the cutting wire. Even a slight misalignment can result in uneven cuts and reduce the overall cutting quality.
5. Machine Maintenance
Regular maintenance of the multi wire cutting machine is essential for optimal performance. Check the guide pulleys, rollers, and other moving parts for wear and tear. Replace any damaged components promptly to prevent them from affecting the cutting quality.
Clean the machine regularly to remove dust, debris, and cutting fluid residues. This not only helps to maintain the machine's performance but also extends its service life.
6. Operator Training
Well - trained operators are key to achieving high - quality cuts. Provide comprehensive training to your operators on the proper operation of the multi wire cutting machine, including how to set up the machine, adjust the cutting parameters, and troubleshoot common problems.
Operators should also be trained to perform regular inspections and maintenance tasks. They need to be able to recognize the signs of potential problems, such as abnormal noise or vibration, and take appropriate actions in a timely manner.
7. Cutting Parameter Optimization
Optimizing the cutting parameters is crucial for improving the cutting quality. Parameters such as cutting speed, wire feed rate, and cutting pressure need to be adjusted according to the material being cut, the type of cutting wire, and the desired cutting quality.
For example, when cutting a hard material, a lower cutting speed and higher cutting pressure may be required to ensure a clean cut. Experiment with different parameter settings to find the optimal combination for your specific application.
8. Quality Inspection
Implement a strict quality inspection process to ensure that the cuts meet the required standards. Use precision measuring tools, such as calipers and micrometers, to measure the thickness, flatness, and surface roughness of the cut pieces.
Inspect the cut edges for any signs of chipping, cracking, or unevenness. If any quality issues are detected, analyze the root cause and take corrective actions, such as adjusting the cutting parameters or replacing the cutting wire.
Conclusion
Improving the cutting quality of a multi wire cutting machine requires a comprehensive approach that involves selecting the right cutting wire, controlling the wire tension, managing the cutting fluid, ensuring proper workpiece fixation, performing regular machine maintenance, training operators, optimizing cutting parameters, and conducting quality inspections.

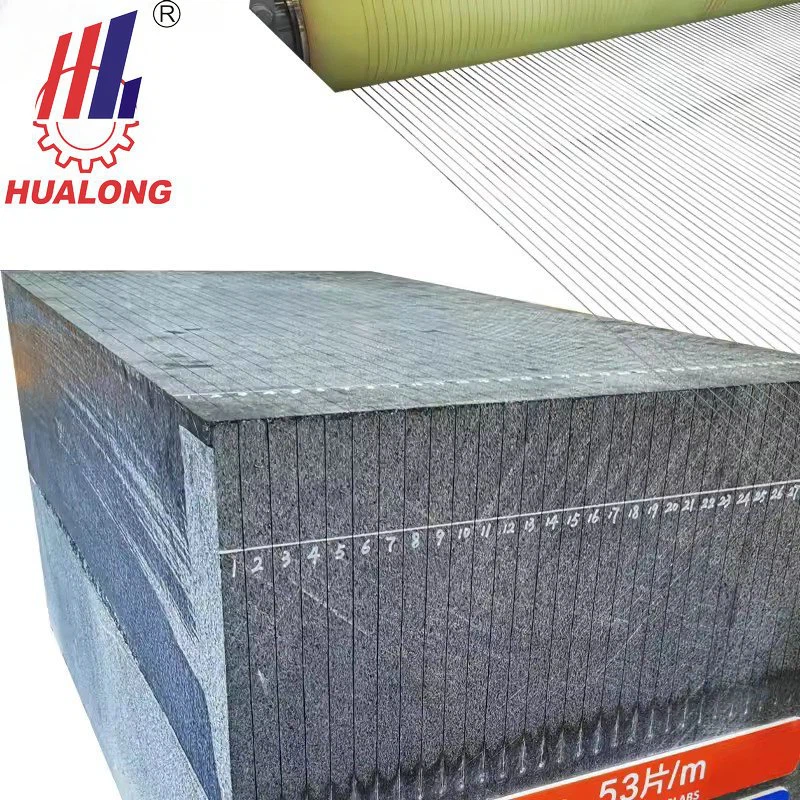

As a supplier of multi wire cutting machines, we are committed to providing high - quality products and technical support to help our customers achieve the best cutting results. If you are interested in our Super Fine Multi Wire Saw Machine or Wire Saw for Stone, please feel free to contact us for more information and to discuss your specific requirements. We look forward to working with you to improve your cutting processes and enhance your production efficiency.
References
- Smith, J. (2018). Advanced Cutting Technologies in Manufacturing. Publisher: Industrial Press.
- Johnson, A. (2020). Multi Wire Cutting Machine Operation and Maintenance Guide. Publisher: Tech Books.
- Brown, C. (2019). Cutting Fluid Selection and Management for Precision Cutting. Journal of Manufacturing Science, 15(2), 78 - 85.
