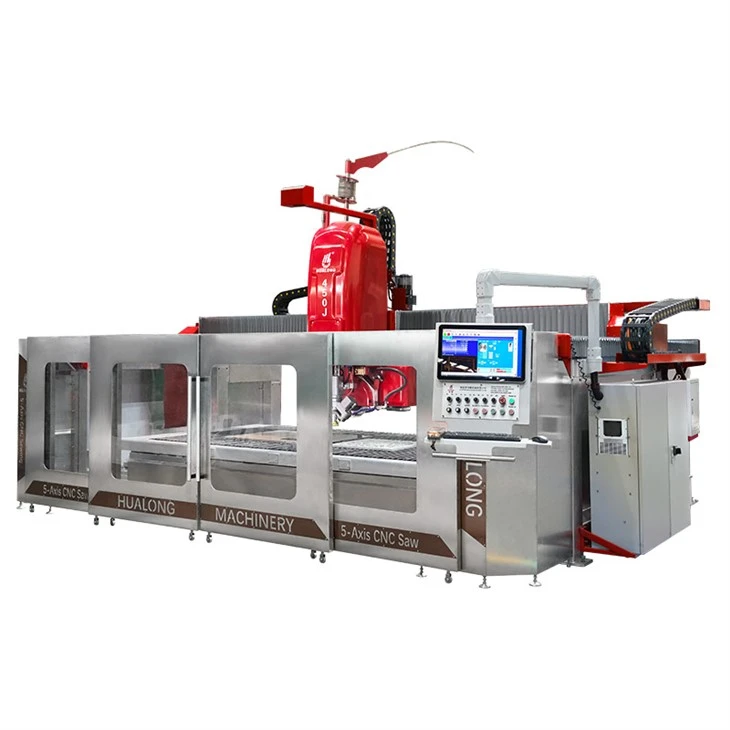

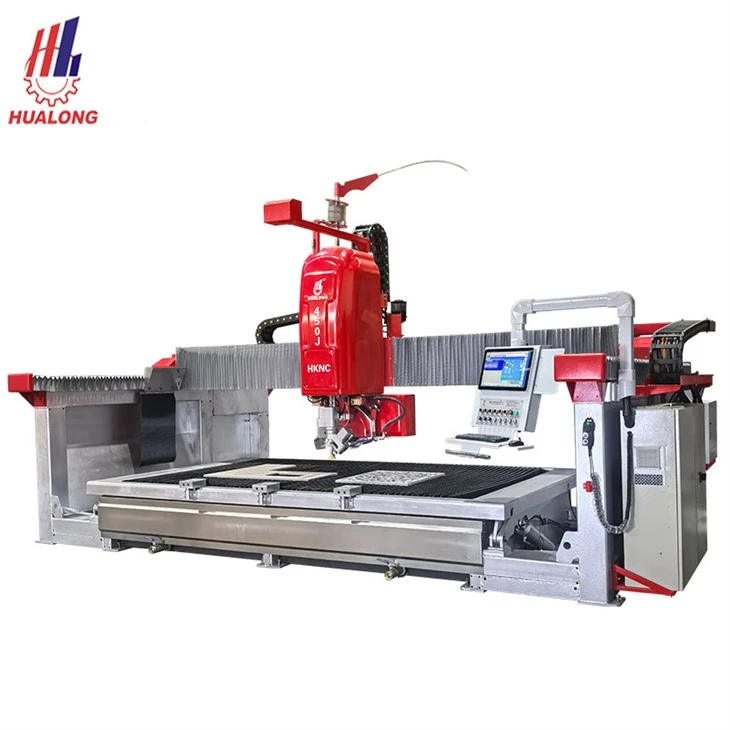

Bridge Milling Machine

HKNC-450J  Machine Characteristics

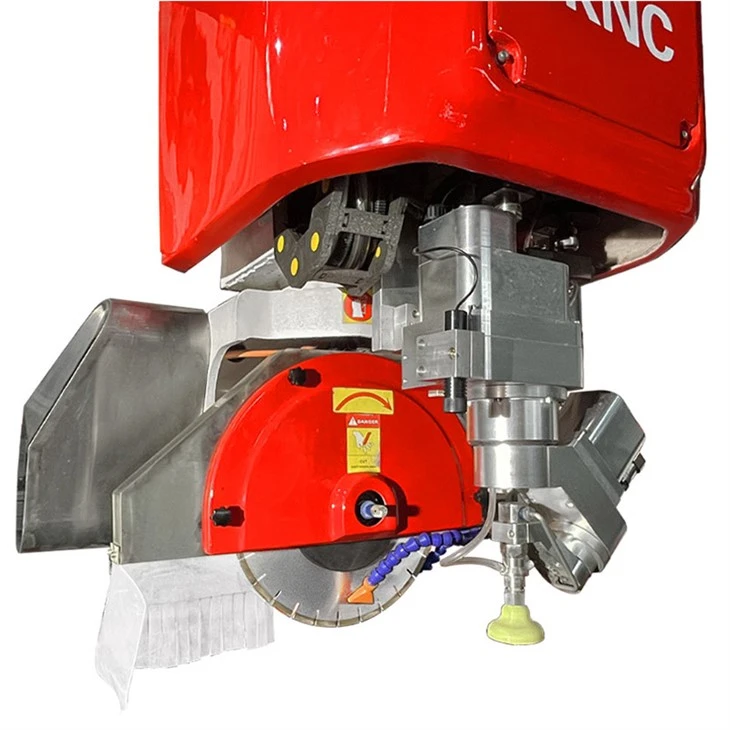

• Dual-Engine Integration: Combines a 5-axis interpolated diamond blade with a high-pressure abrasive waterjet head on a single gantry.

• Italian ESA Control System: Managed by a top-tier Italian ESA CNC system featuring an intuitive 19-inch color touch screen.

• Pegasus CAD/CAM Software: Includes native Italian Pegasus software for seamless drawing, nesting, and 3D toolpath modeling.

• High-Precision Motion: Utilizes premium Taiwanese Hiwin linear guides driven by synchronized digital servomotors and helical gear racks.

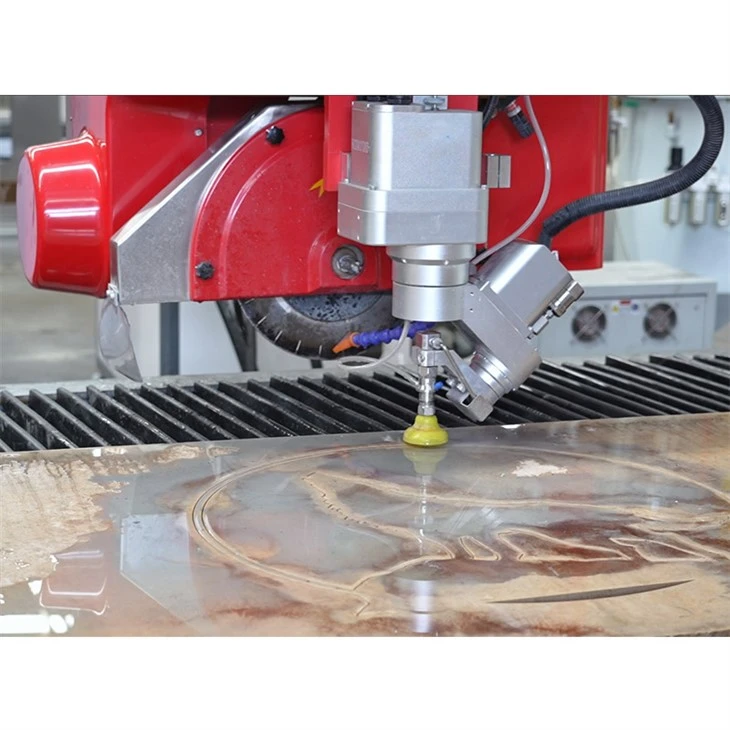

• Ultra-Pressure Waterjet: Equipped with a KMT-H20 JET50 ultra-high pressure pump assembly powered by Siemens motors.

• Flexible Kinematics: Continuous automatic blade rotation from 0° to 360° combined with a 0° to 90° blade tilt and 0° to 60° waterjet tilt.

Advantages

• Maximizing material yield: An optional integrated board imaging camera captures the original board to automatically map parts around structural defects and optimize texture matching.

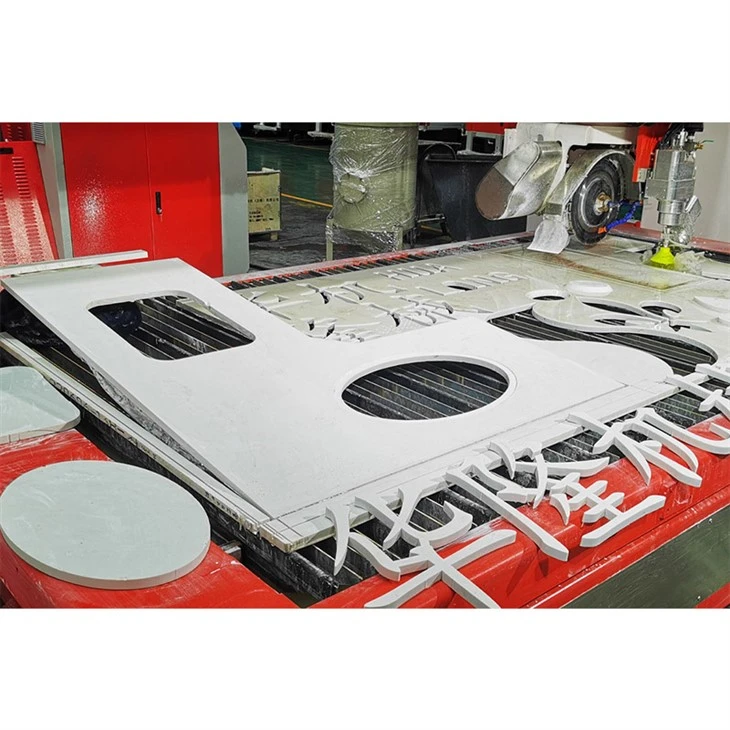

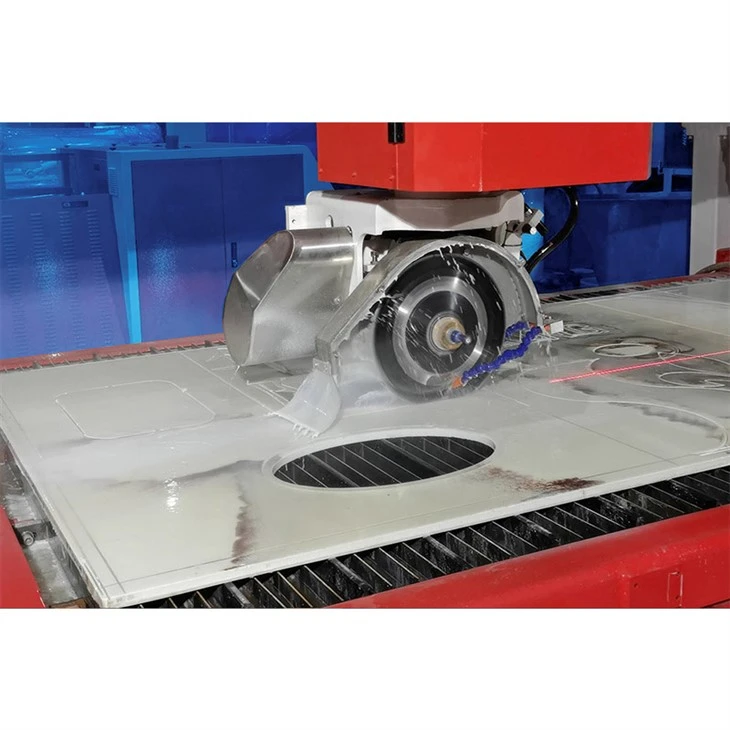

• Interrupted-Free Processing: The machine switches between blade sawing and waterjet cutting without the need for the operator to reposition or slide the sheet.

• Lower Overhead Costs: Integrating two industrial machines into a unified framework can save workshop space, lower power consumption, and reduce labor demand.

• Zero vibration tooling: The 10000 kg heavy-duty steel frame can effectively suppress vibration, allowing the sprayer to clean the interior corners to narrow radii.

• Simplified loading: The automatic hydraulic worktable can tilt up to 85 degrees, allowing operators to load large stone slabs and reducing the risk of breakage.
