HLMW100/150 Ultra-thin multi wire machine Machine is a newest barren material cutting equipment launched by Hualong Machinery. The most important thing is that it redefines the standard of stone blcok cutting.
This machine uses 0.3-0.8mm fine diamond wire to cut the barren material. The cutting surface is flat and highly productive. The overall yield rate is more than 97%.
Main features
High yield:By using 0.4-0.7mm diamond wire to cut the barren material, the yield is increased to more than 97%, which is 15-20% higher than the traditional cutting method.
Environmental protection and energy saving: the emission of stone powder is reduced by more than 90%, which reduces the cost of manual cleaning of waste materials and also significantly reduces the impact on the environment.
Low noise operation:vibration-free design reduces noise by more than 40 dB, providing a quieter working environment for workers.
Ultra-thin board production: capable of producing ultra-thin boards with a thickness of less than 10 millimeters to meet the demand of the high-end market.
High-precision cutting: Effectively prevent line marks and increase flatness of slab by 50% to ensure cutting quality. Reduce the cost of secondary processing
Energy saving and power saving: Due to the significant reduction of friction in cutting stone, power consumption is reduced by 50%, saving power cost.
space optimization:equipment footprint reduced by more than 30%, suitable for some limited space stone processing plant.
High output:90 pieces of 1.08 cm thick plates can be cut per meter. The output rate is up to 98.2%, very high productivity.
Cutting surface of the plate:smoother, reducing the need for subsequent polishing process.
Technichal:
Are you worried that the diamond wire is easy to break? Although broken wire is a thing that everyone is concerned about. But it is totally unnecessary to worry. The problem of wire breakage that has been plaguing the older generation of machines has been completely solved on the HLMW100/150 multi wire machine. Hualong's technicians have upgraded the patented mechanical structure and unique winding technology, which makes the diamond wire show great stability during the cutting process and will not break easily due to the hardness of the stone.
The HLMW100/150 produces 15% more than a conventional gangsaw and 20% more than a conventional diamond wire saw machine. This difference stems mainly from the difference in wire saw diameters:
HLMW100/150: The diameter of the diamond wire saw is only 0.55 mm.
Conventional equipment: The diamond wire saw diameter is usually between 5.3-7.3 mm.
gangsaw: The thickness of the band segment band saw is 2.2-3.5 mm.
The performance under different Mohs hardness is as follows:
Mohs hardness ≤ 7 stone: diamond wire can cut smoothly, stable operation, no risk of breakage.
Mohs hardness >7: Although the diamond abrasive will wear out faster, the wire itself remains intact and will not break.
Even if it breaks accidentally due to external forces, depending on the location of the break point, the repair time is only 0.55 hours, after which cutting can continue, minimizing downtime.

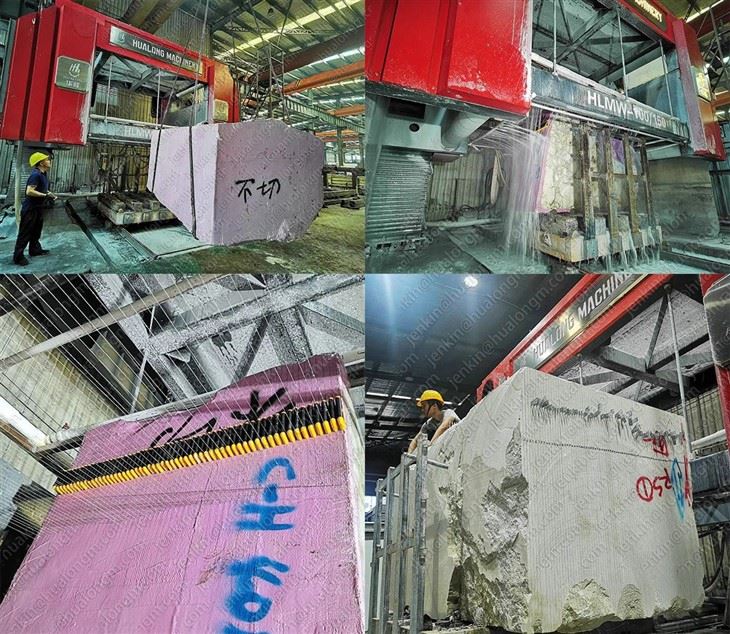

workshop
